6. Profiles

MetaRoad offers the ability to create various “presets” of road elements.

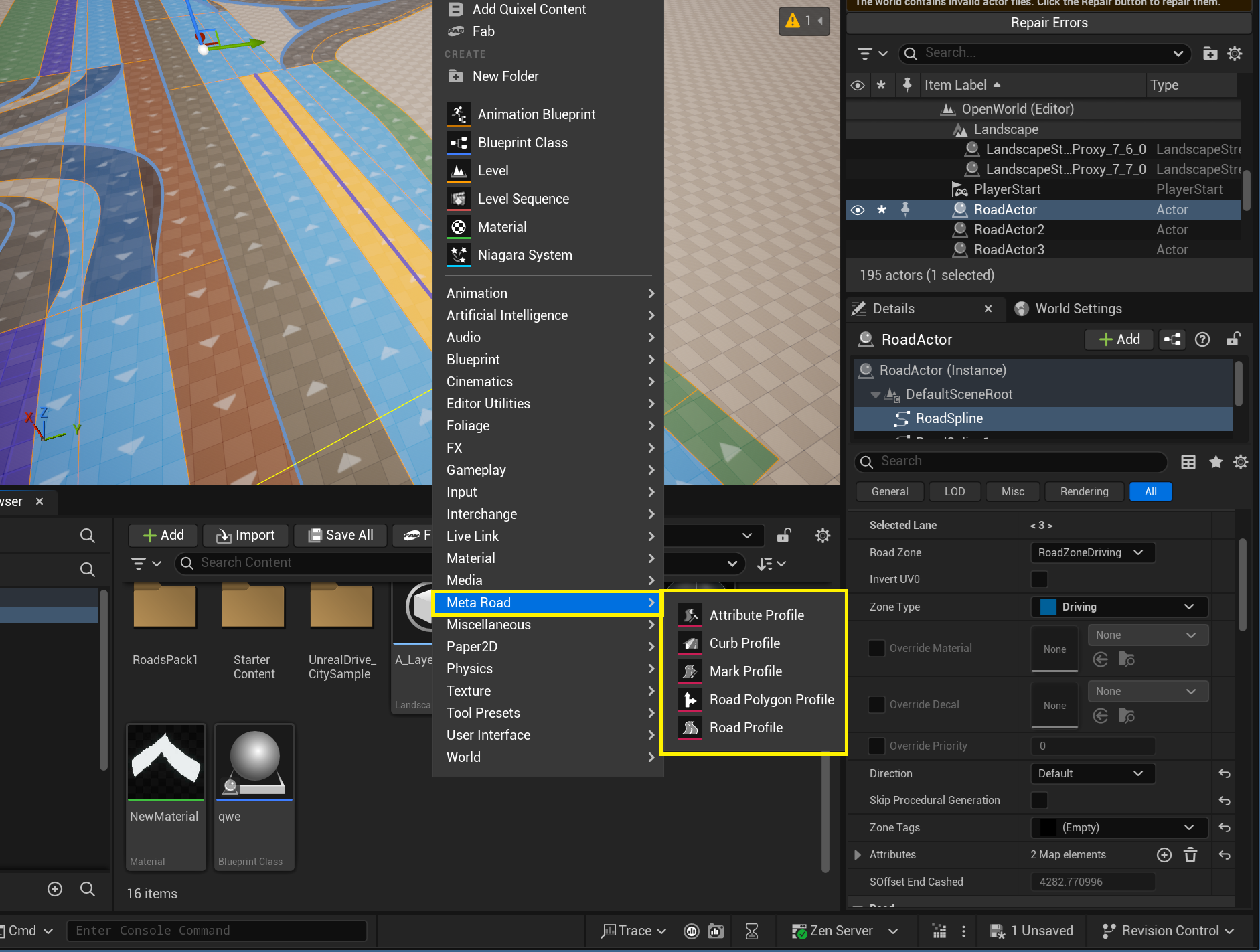

Each “preset” is an UnrealEngine asset that you can add in the Content Browser window under the Meta Road category:
alt text

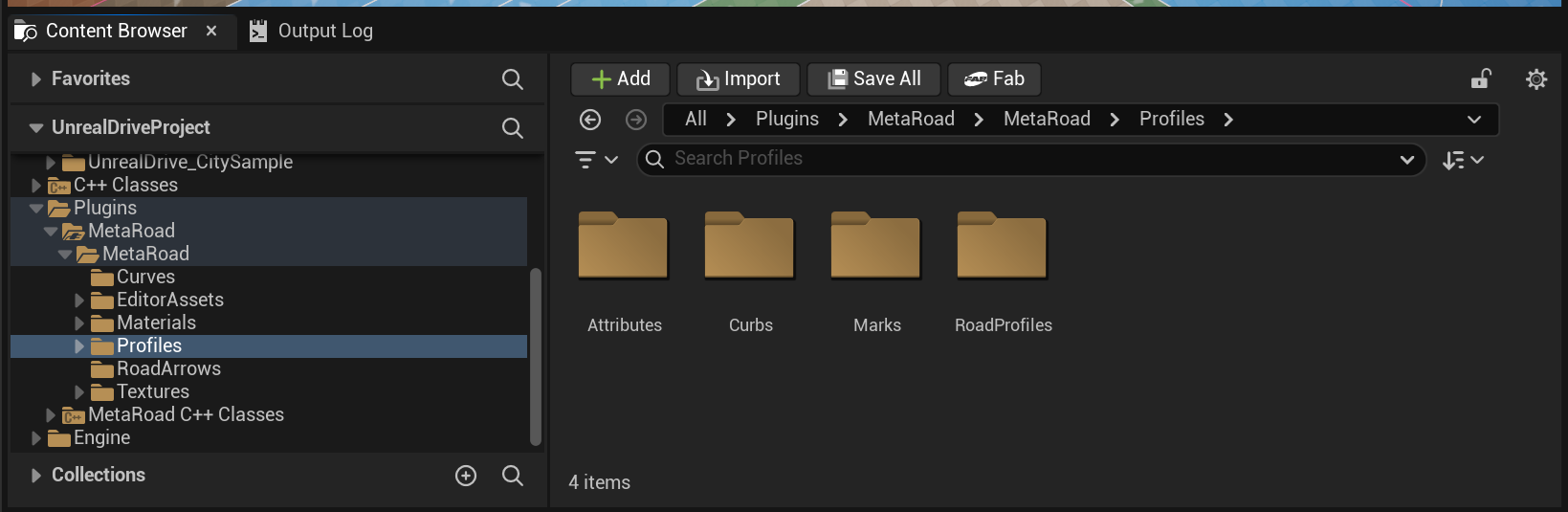

The MetaRoad already has a default presets at /MetaRoad/DefaultPreset. It should not be changed for backward compatibility:
alt text

6.1. Road Profile

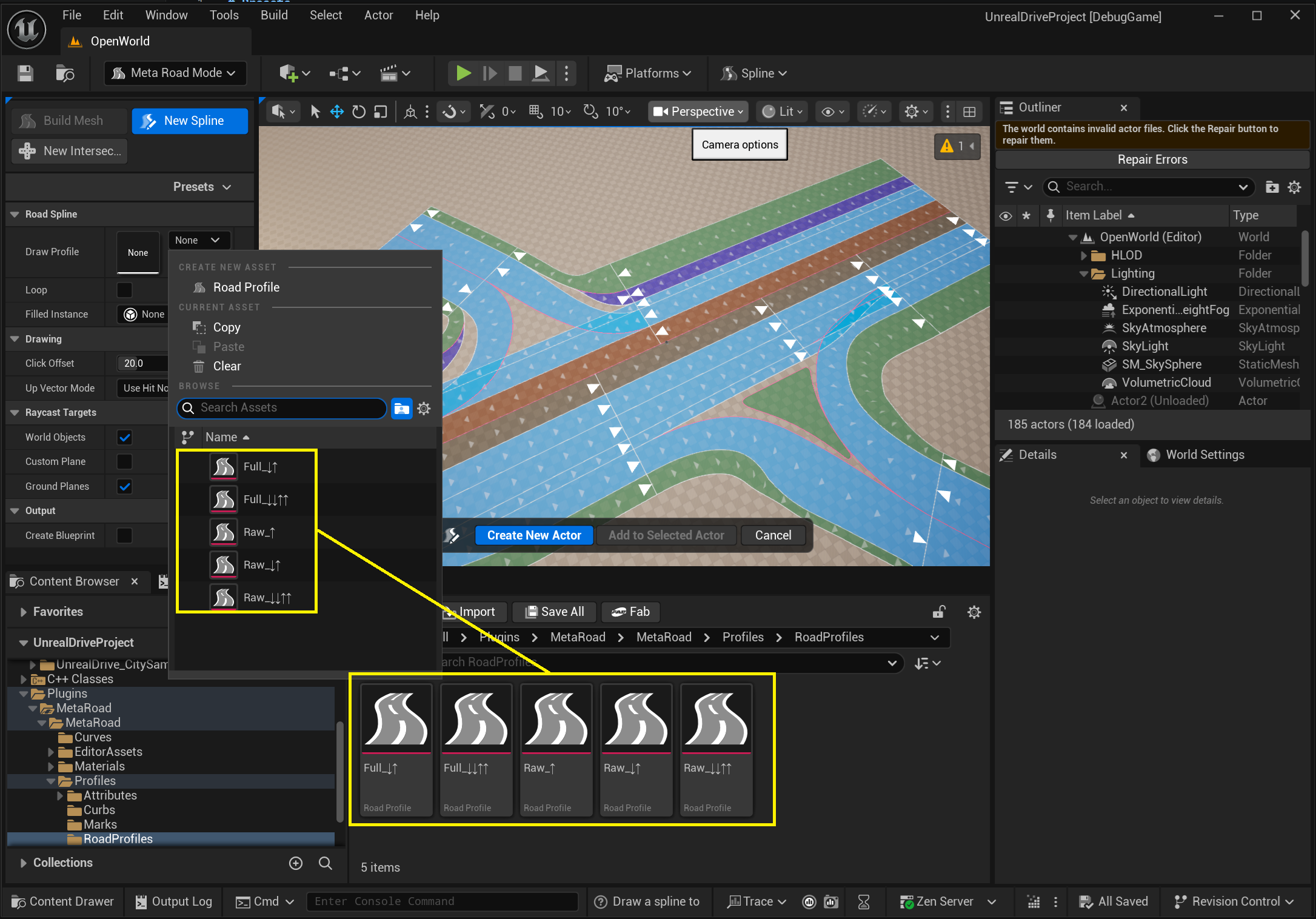

Contains road drawing profile using in Draw Spline Tool:
alt text

6.2. Curb Profile

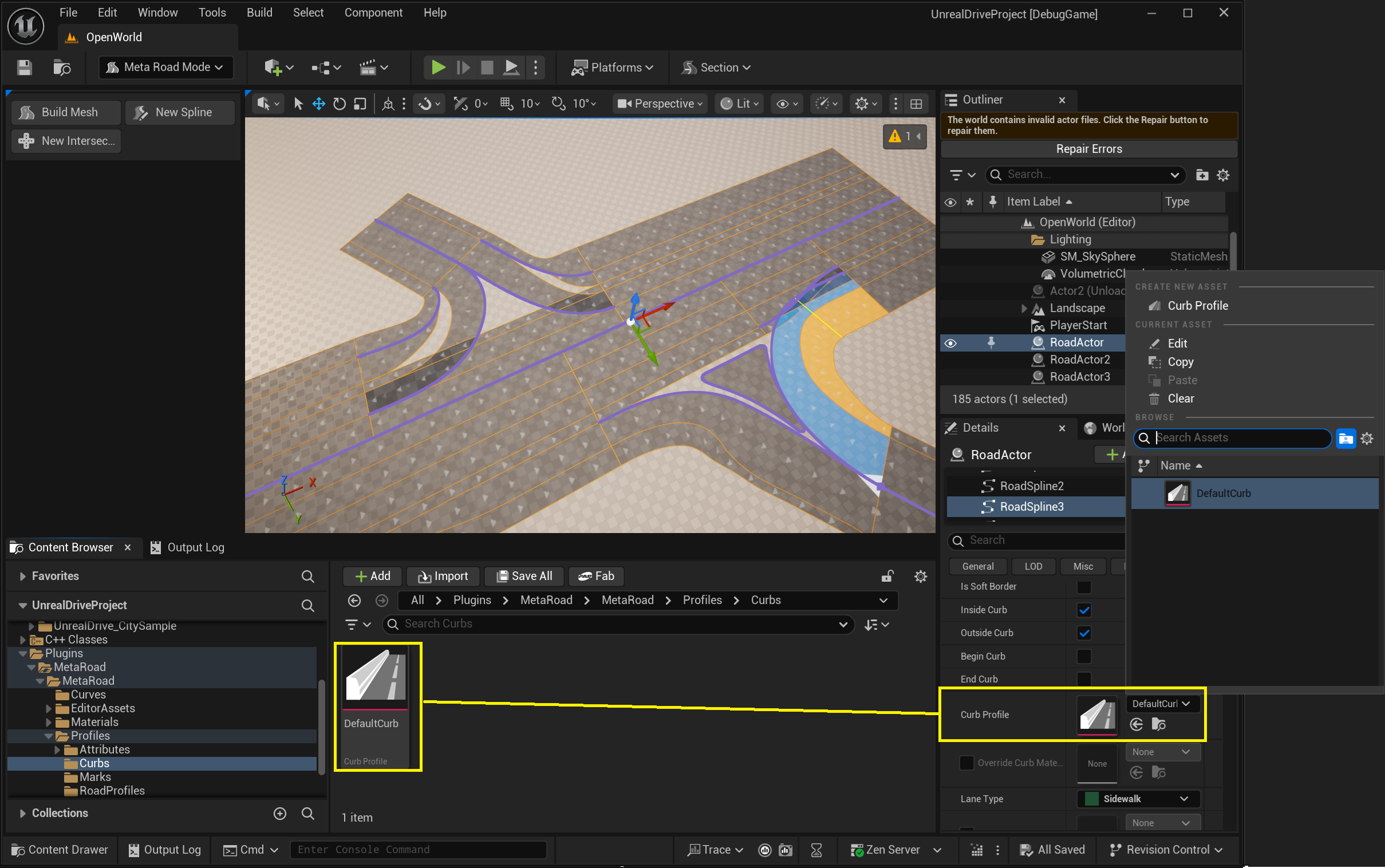

Contains curb type profiles for Road Lane type RoadLaneSidewalk. You can set the curb material and geometry. These profiles are available in Build Mesh Modeling Tool:
alt text

6.3. Mark Profile

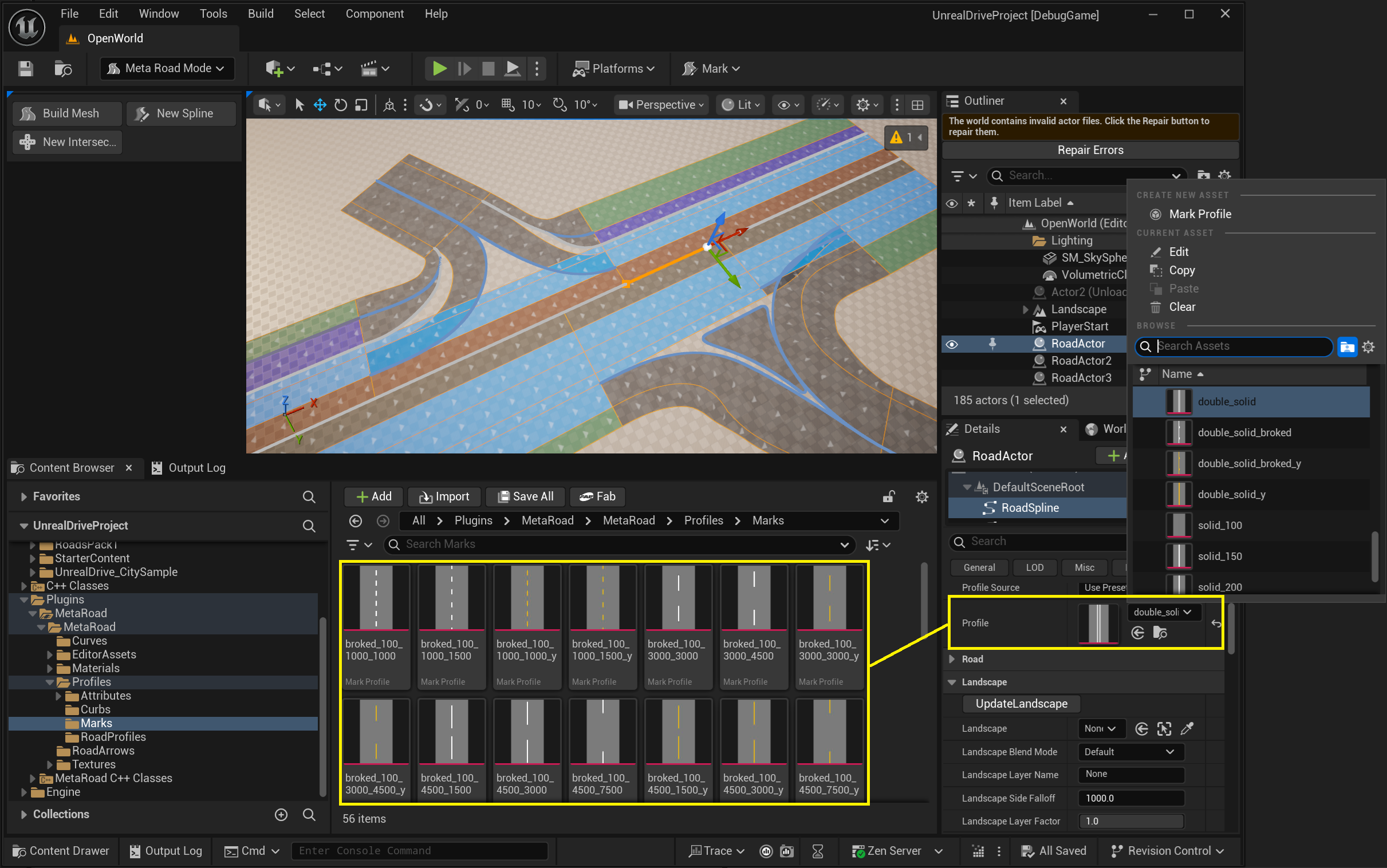

Contains profiles of road marking types for Road Lane type RoadLaneDriving. You can specify the type (solid, dashed, double), dimensions, and color of the marking strip. These profiles are available in Road Mark Attribute:
alt text

6.4. Attribute Profile

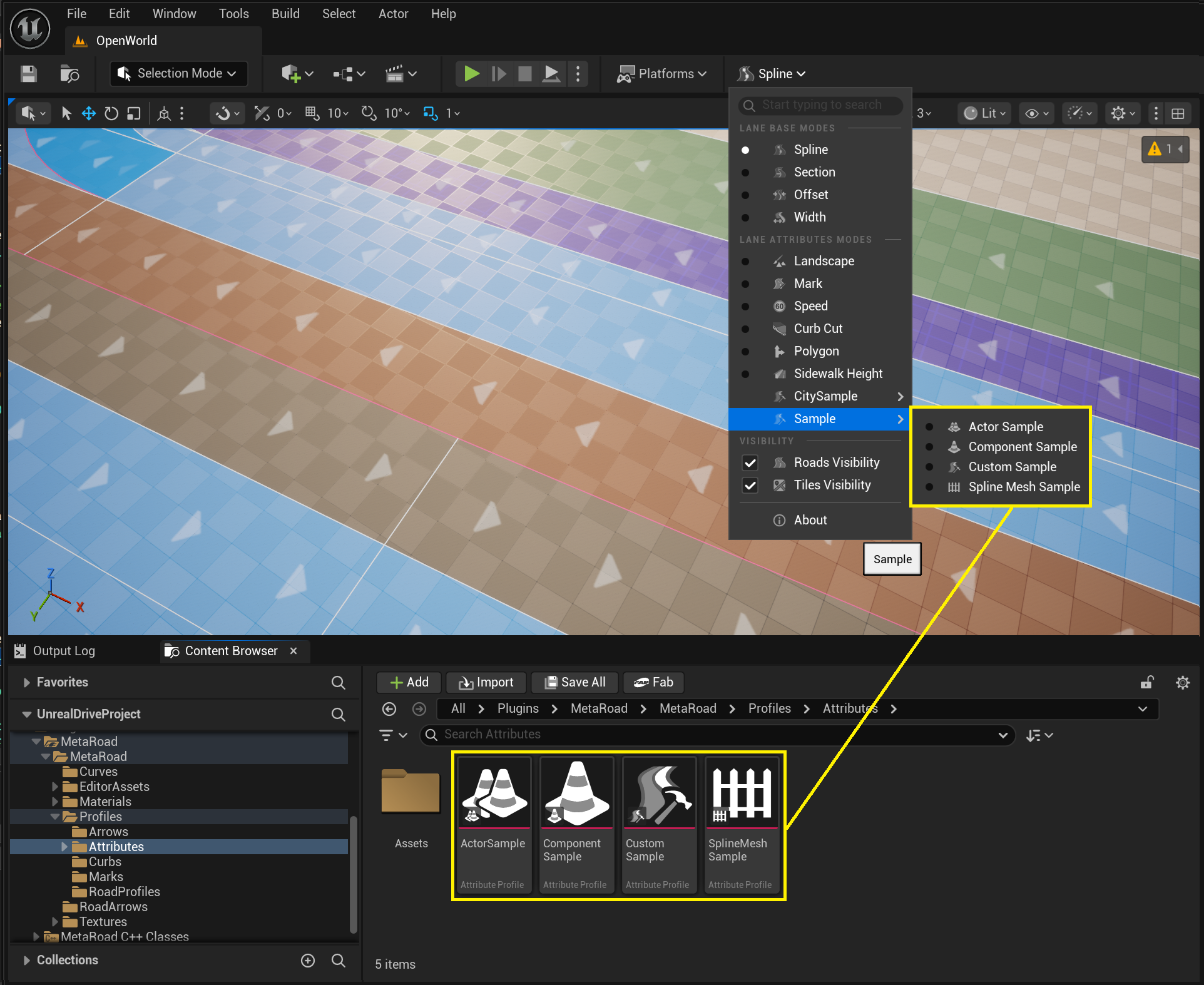

Allows to create custom Lane Attribute. All new attributes are automatically available in Attribute Mode:
alt text

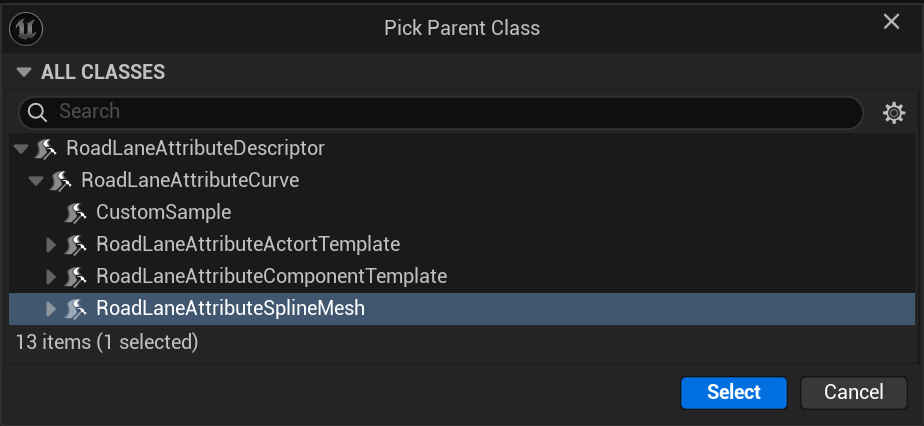

After selecting the option to create an Attribute Profile, you will be asked to select the base class of the Attribute Profile.
alt text

Attributes can store any data and perform any actions along road lanes. Below is a group of Curve attributes (URoadLaneAttributeCurve) that can be used to generate various objects along road lanes.

6.4.1. Curve

This is the base class (URoadLaneAttributeCurve) allows to generate objects along a road lane. It doesn’t generate anything itself, but provides the GenerateAssert() method, which must be overridden in BP or C++:
alt text

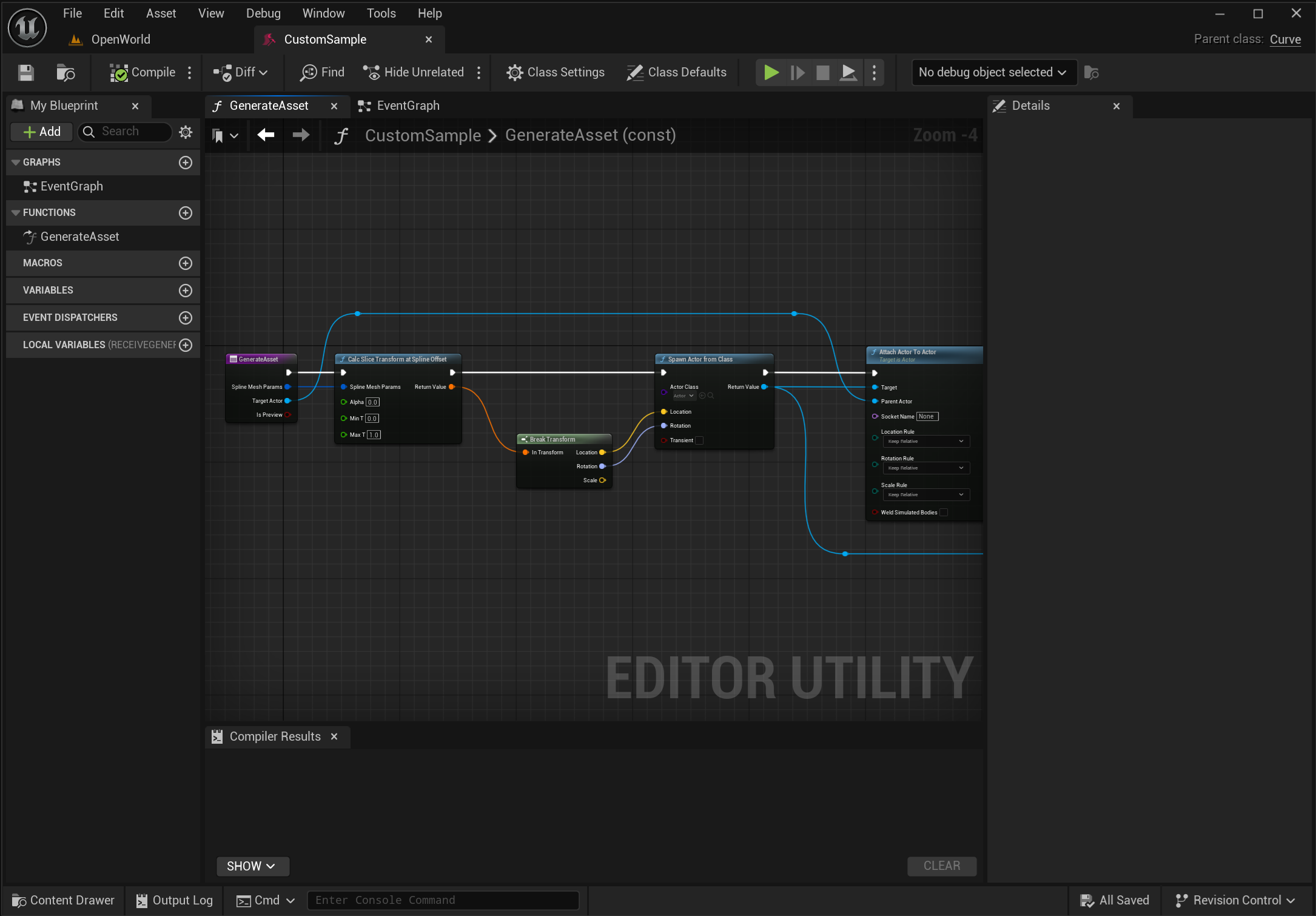

Example of such an asset at: /MetaRoad/MetaRoad/Profiles/Attributes/CustomSample.
alt text

6.4.2. Spline Mesh

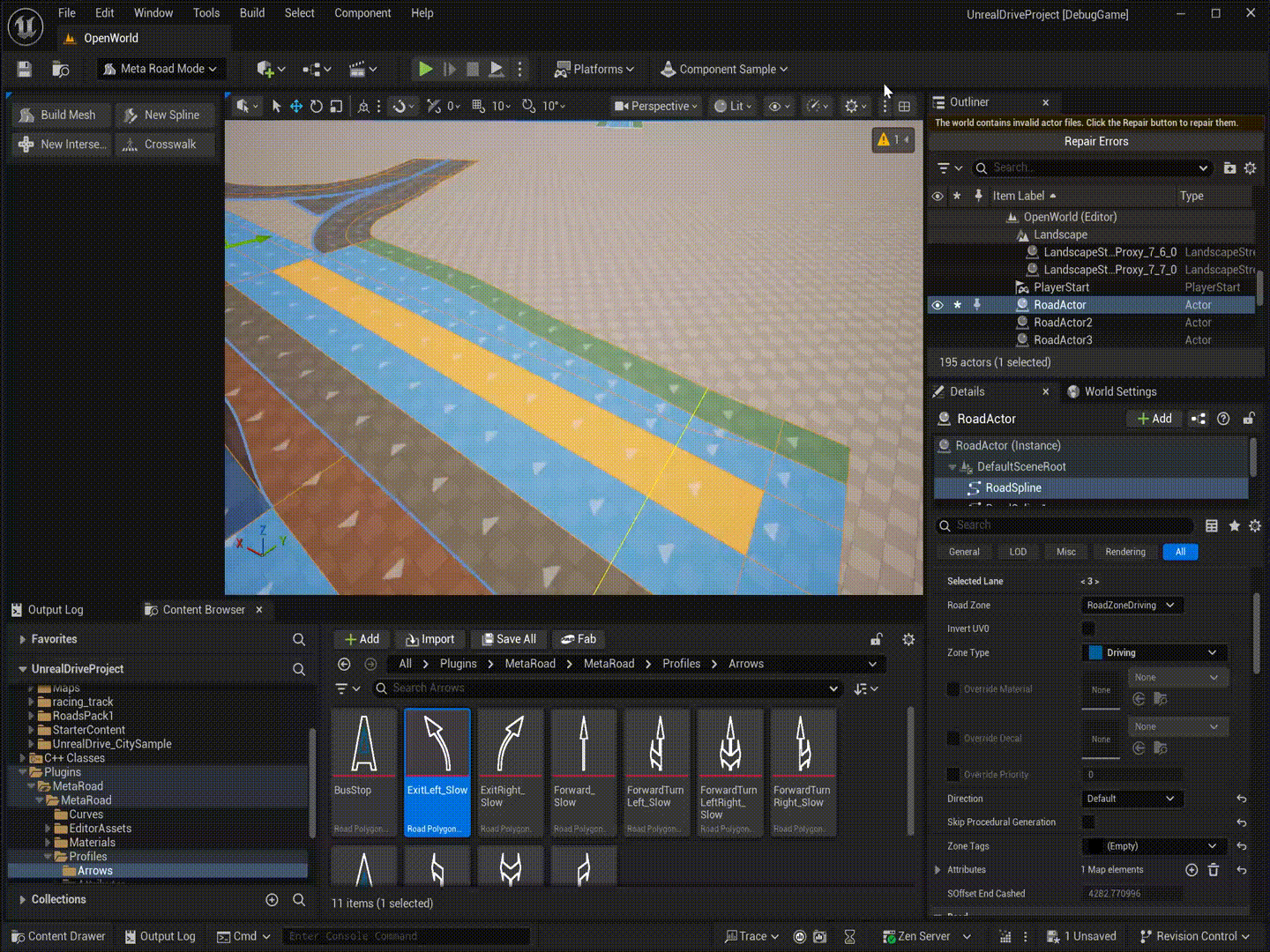

Allows to generate USplineMeshComponent from Static Mesh along Road Lane at LengthOfSegment interval. alt text

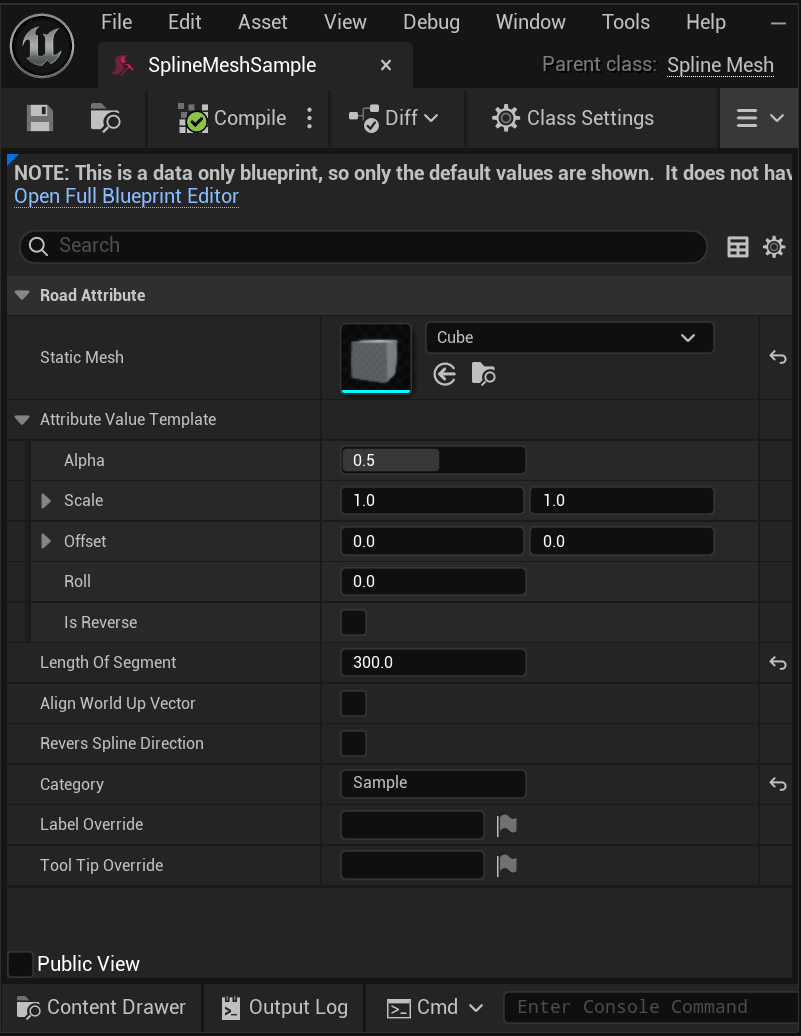

Example of such an asset at: /MetaRoad/MetaRoad/Profiles/Attributes/SplineMeshSample. alt text

6.4.3. Component Template

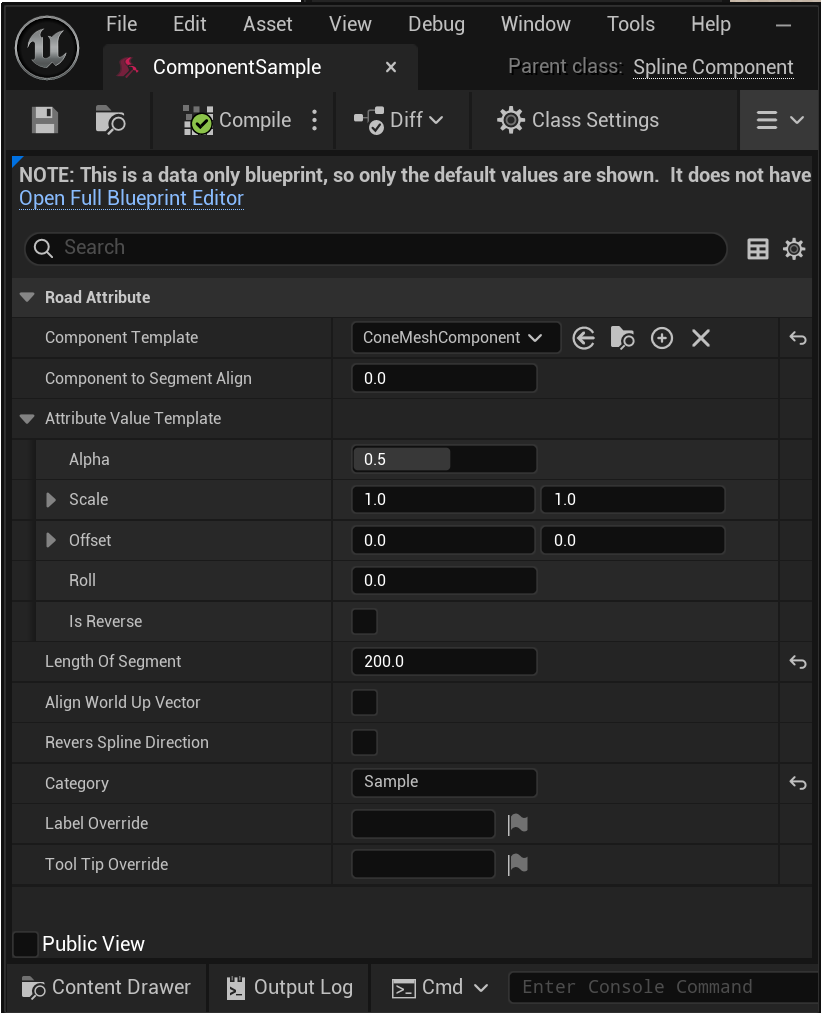

Allows to generate arbitrary USceneComponent from Component Template along Road Lane at LengthOfSegment interval. alt text
Example of such an asset at: /MetaRoad/MetaRoad/Profiles/Attributes/ComponentSample.

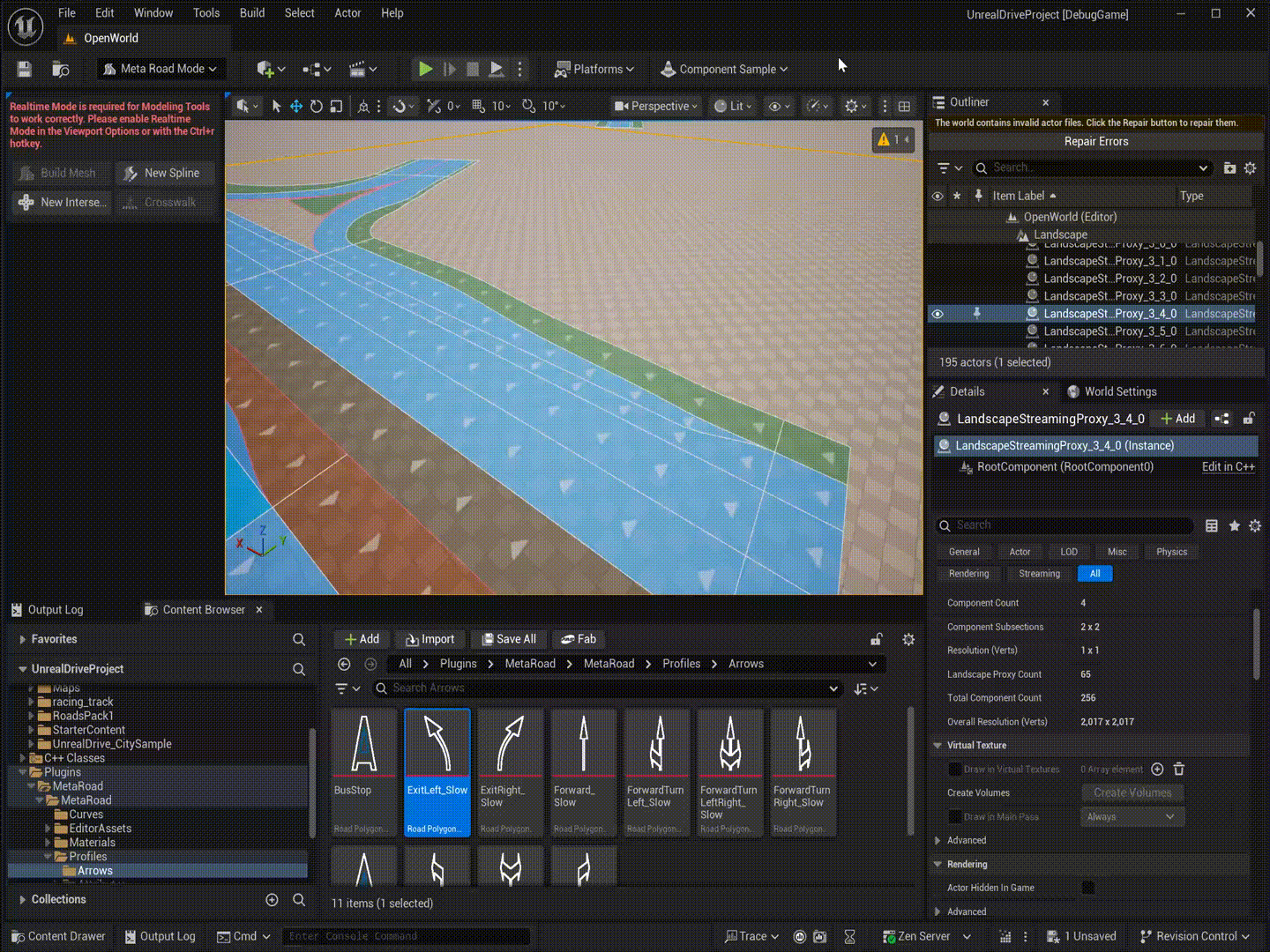

This template is convenient to use for repeating objects along Road Lane, such as traffic cones, flagpoles, lampposts, and power lines. alt text

6.4.4. Actor Template

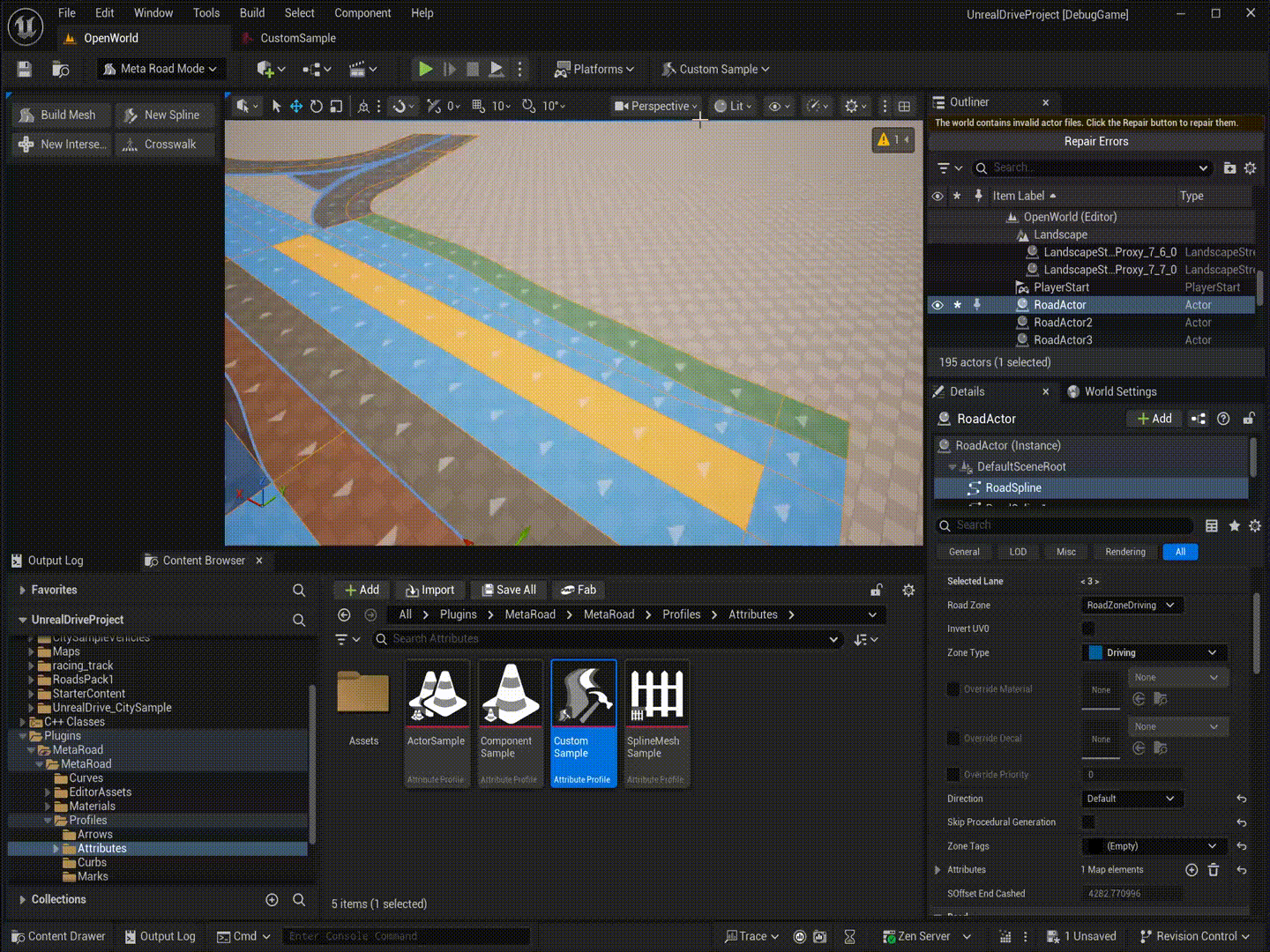

Allows to generate arbitrary Actor along Road Lane at LengthOfSegment interval. alt text

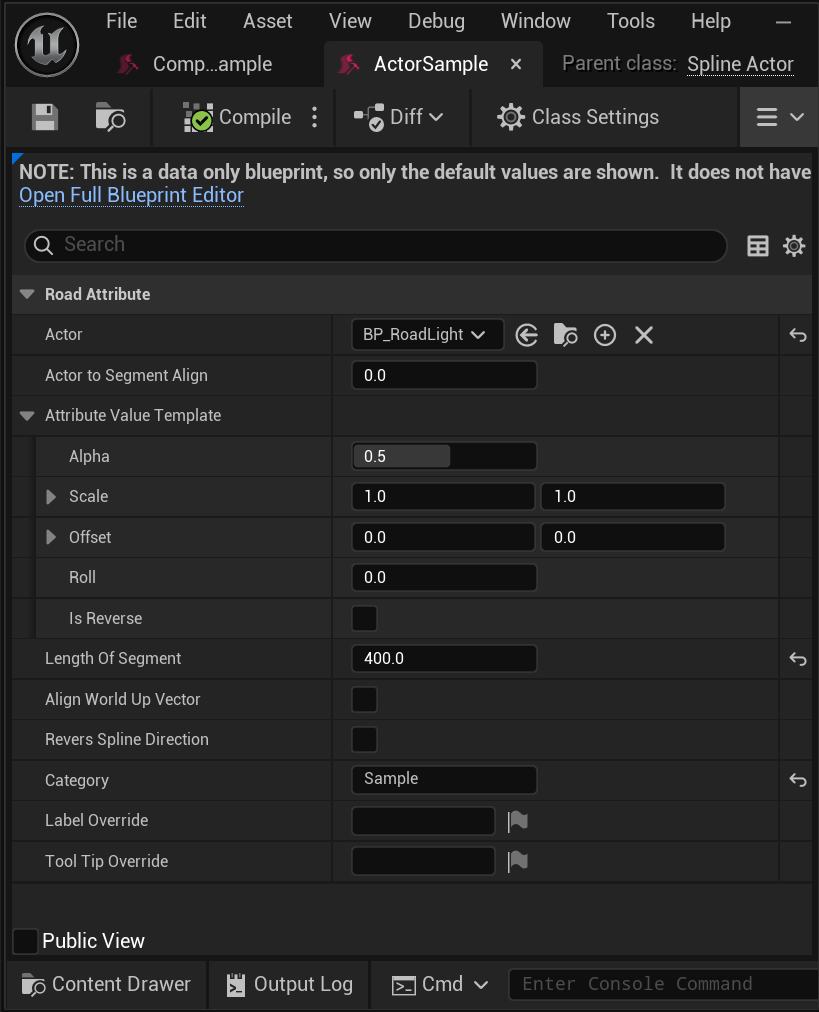

Example of such an asset at: /MetaRoad/MetaRoad/Profiles/Attributes/ActorSample. alt text

6.5. Polygon Profile (Pro)

A Polygon Profile (URoadPolygonProfile) is a reusable asset that stores one or more 2D closed polygon shapes. These shapes are used by the Polygon Attribute to place custom overlays (stop lines, arrows, hatching, etc.) on road lanes. alt text
Each profile contains an array of Polygon entries. Every entry defines:

Property

Description

Curve

A 2D Hermite spline (FInterpCurveVector2D) defining the closed polygon outline in local lane space

RoadZone

Road surface type applied to this polygon (determines its material and color)

TextureAngle

UV texture rotation in degrees

TextureScale

UV texture scale multiplier

MaxSquareDistanceFromSpline

Curve-to-polyline simplification tolerance

6.5.1. Polygon Editor

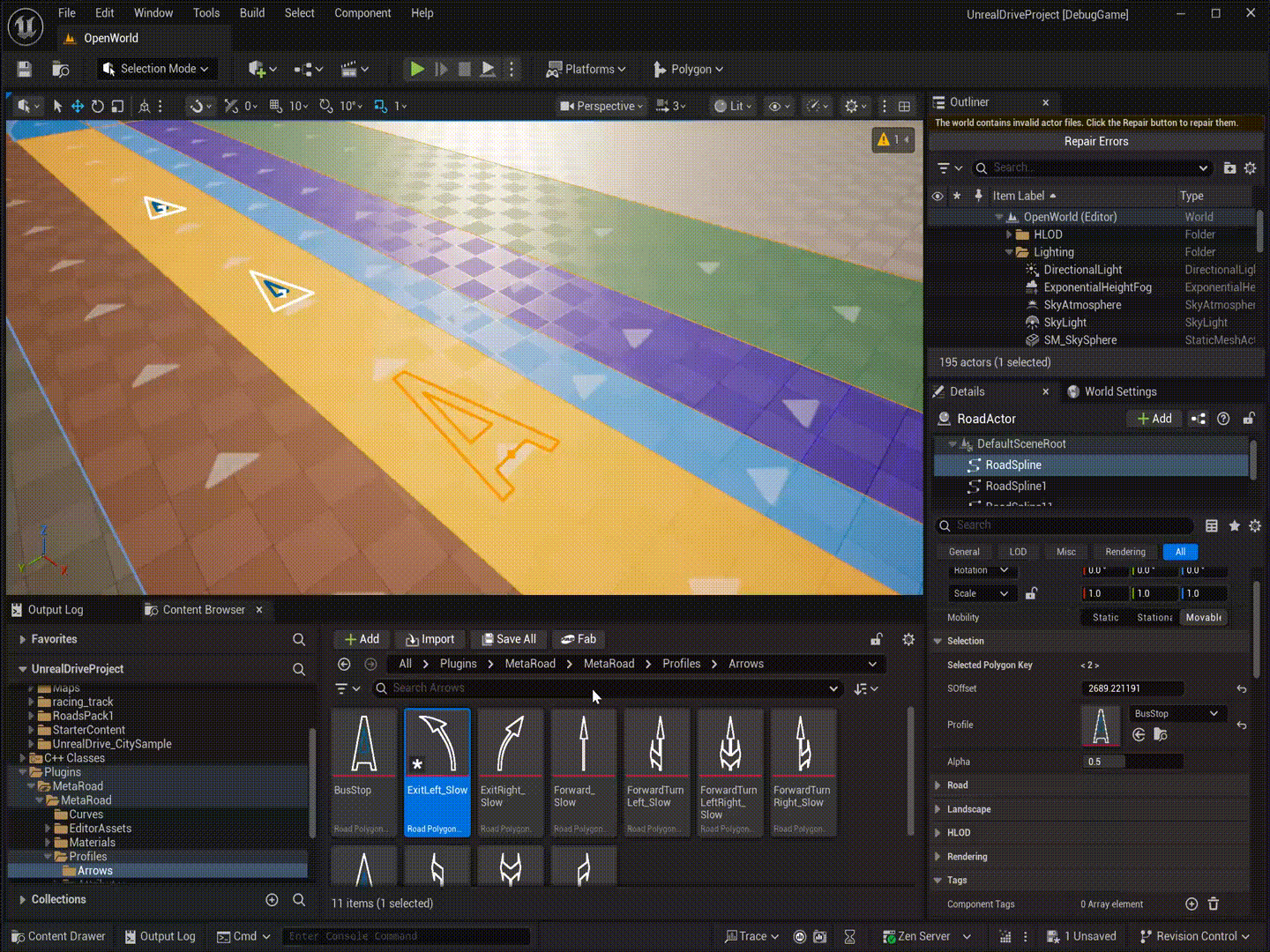

Double-clicking a Polygon Profile opens a dedicated 2D canvas editor:

  • LMB drag — move polygon points or their tangent handles (for Hermite curve modes)

  • RMB context menu — add or delete polygons and individual points

  • Scroll — zoom in/out

  • MMB / RMB drag — pan the canvas

  • Multiple polygons are visible simultaneously; the active polygon is highlighted while others are dimmed

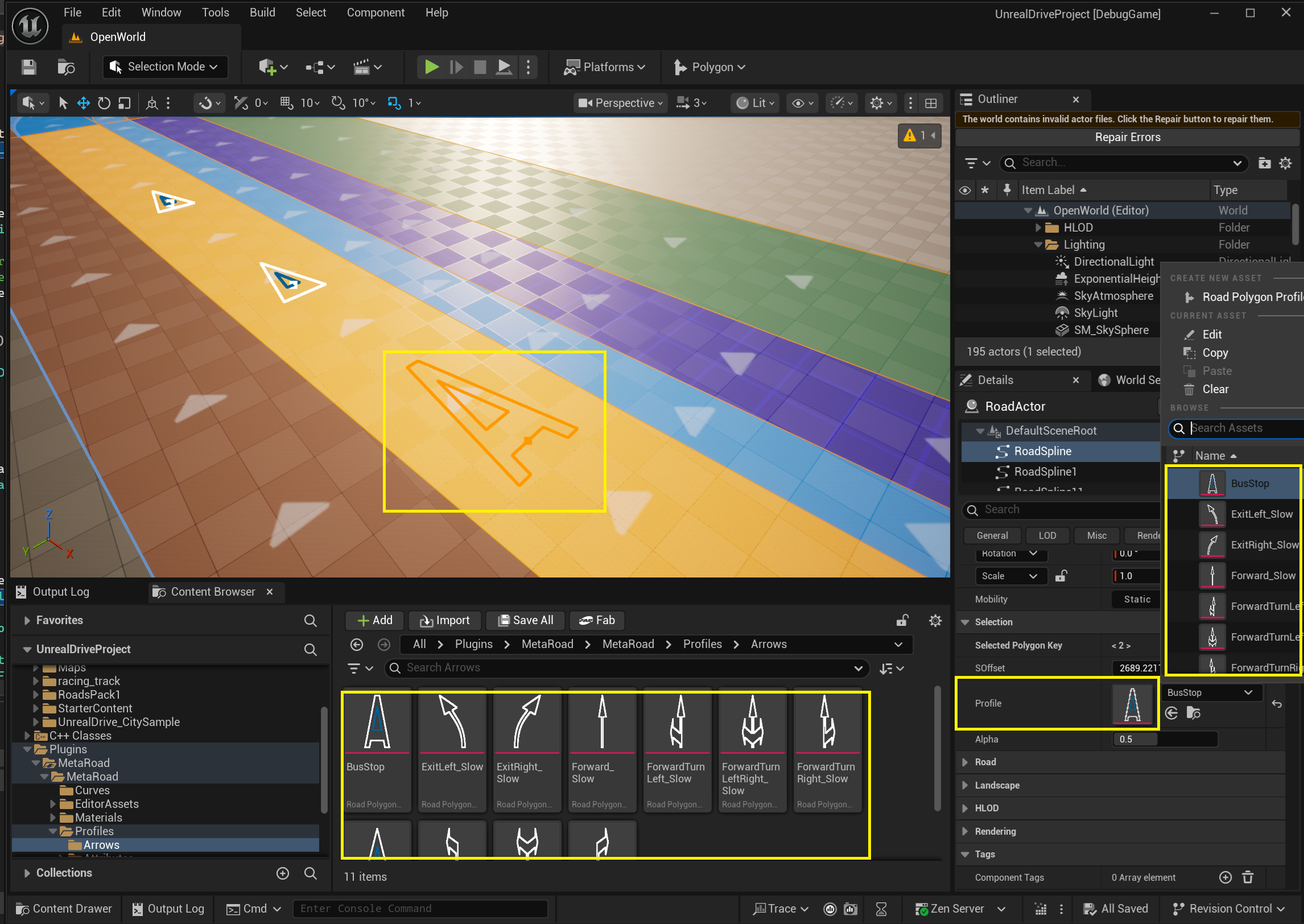

The Polygon Profile can be referenced by the Profile property of any Polygon Attribute key, allowing the same shape to be reused across many lanes. alt text
