Actor Template Attribute

Note

Inherited from Generate Attributes — shares its anchor, alignment, and per-key transform channels.

Spawns any AActor repeatedly along the lane at the LengthOfSegment interval — for street furniture, signs, lights, or any prop actor that should repeat along the road. Add it and place keys with Attribute Mode.

Create new Attribute

Create a new attribute from the Content Browser under the Meta Road category:

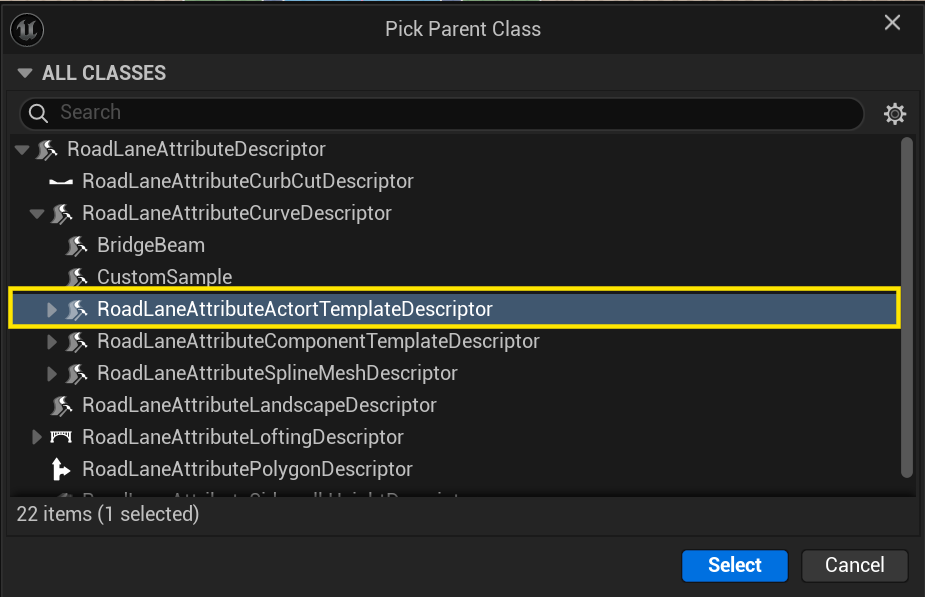

In the Pick Parent Class dialog choose RoadLaneAttributeActortTemplateDescriptor:

Properties

Property	Description
Actor	The AActor subclass spawned once per segment and attached to the road actor.
ActorToSegmentAlign	Placement point within the segment [0 = start, 0.5 = mid, 1 = end].
LengthOfSegment	Target arc-length [cm] of each generated segment (segment density).
Sampler	How the lane is subdivided — By Length of Segment or Between Keys (one actor per key interval).

For the shared per-key transform channels (Alpha, Scale, Offset, Roll, width overrides) and Alignment, see How a Generate Attribute follows the lane.

Drag and Drop

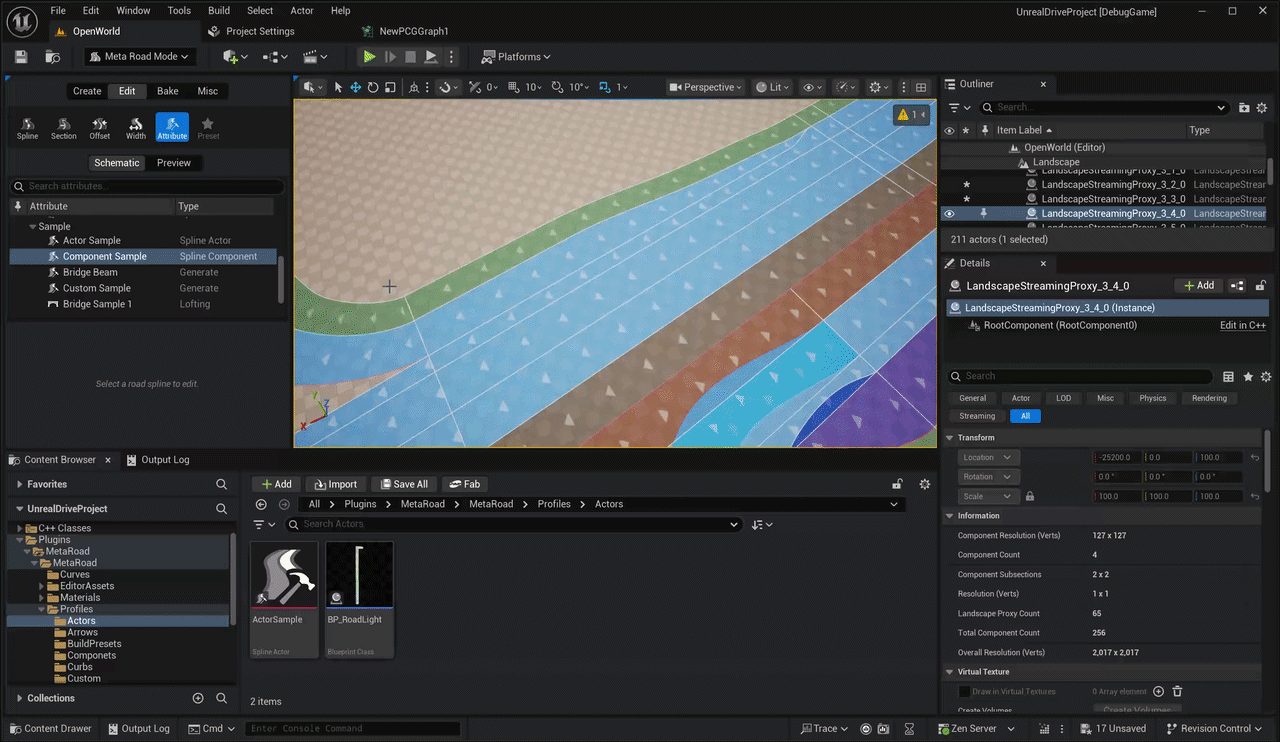

Drag an Actor Template attribute profile from the Content Browser onto a road lane to add it directly:

Examples

Sample assets: /MetaRoad/MetaRoad/Profiles/Actors.

See also

• Generate Attributes — the base family (anchor / alignment / per-key transform channels).

• Attribute Profile — how attribute assets are created in the Content Browser.

• Attribute Mode — add the attribute and place keys along a lane.
